Product Availability: 5 - 10 working days
[switch currency to EUR]
| Order | Request an official quote (RFQ) |
|---|
| Order Code, Price (EUR/GBP) | Probes per set |
|---|---|
| ARROW-NCR-10 | 10 pcs |
| € 305.00 £ 268.00 |
|
| ARROW-NCR-20 | 20 pcs |
| € 549.00 £ 483.00 |
|
| ARROW-NCR-50 | 50 pcs |
| € 1210.00 £ 1065.00 |
|
| ARROW-NCR-W | 380 pcs |
| € 6442.00 £ 5669.00 |
|
Product Availability: 5 - 10 working days
AFM Probe type:
ARROW-NCR
Manufacturer: NanoWorld
(https://www.nanoworld.com)
Product Description:
Optimized positioning through maximized tip visibility
NanoWorld Arrow™ NC probes are designed for non-contact or tapping™ mode imaging. This probe type combines high operation stability with outstanding sensitivity and fast scanning ability.

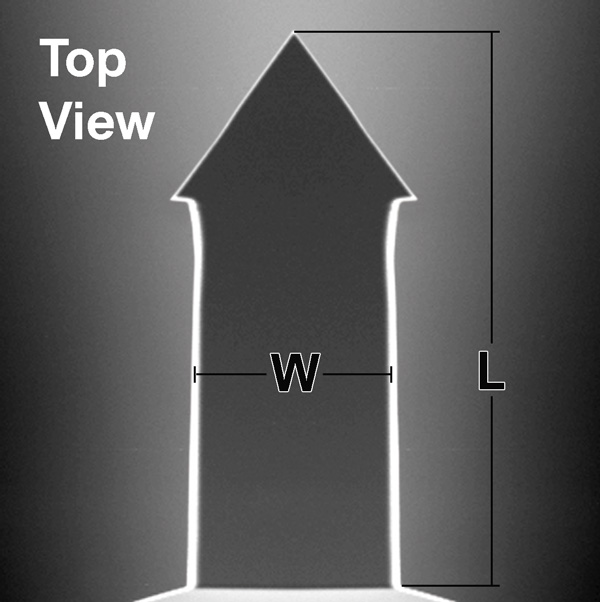

All SPM and AFM probes of the Arrow™ series are made from monolithic silicon which is highly doped to dissipate static charge. They are chemically inert and offer a high mechanical Q-factor for high sensitivity. The probes feature a rectangular cantilever with a triangular free end and a tetrahedral tip.
Additionally, this probe offers an excellent tip radius of curvature.
The unique Arrow™ shape with the tip position at the very end of the cantilever allows easy positioning of the tip on the area of interest.
Application Modes:
AFM Probe Specifications:
AFM Tips:
| shape | tip height | tip set back | tip radius | full cone angle | half cone angle | |
|---|---|---|---|---|---|---|
| Arrow | 0 µm (10 - 15 µm)* | 10 - 15 µm* | 0 µm ( 0 - 0 µm)* | < 10 nm |
AFM Cantilever(s):
| cant. | shape | length | width | thickness | force const. | res. freq. | probe base |
|---|---|---|---|---|---|---|---|
| Beam | 160 µm (155 - 165 µm)* | 45 µm (40 - 50 µm)* | 4.6 µm (4.1 - 5.1 µm)* | 42 N/m (27 - 80 N/m)* | 285 kHz (240 - 380 kHz)* | ||
* typical range
Coating:
Aluminum Reflex CoatingThe aluminum reflex coating consists of a 30 nm thick aluminum layer deposited on the detector side of the cantilever which enhances the reflectance of the laser beam by a factor of 2.5. Furthermore it prevents light from interfering within the cantilever.
**ScanAsyst® and Peak Force Tapping® are registered trademarks of Bruker Corporation.
*** Olympus® is a trademark of Olympus Corporation.
