Order Code, Price (EUR/GBP) Probes per set
AIO-TL-10 10 pcs
€ 260.00 £ 229.00 add to shopping cart
AIO-TL-50 50 pcs
€ 1050.00 £ 924.00 add to shopping cart

Product Availability: 5 - 10 working days


AFM Probe type:

All-In-One-Tipless

Manufacturer: BudgetSensors
Product Description:

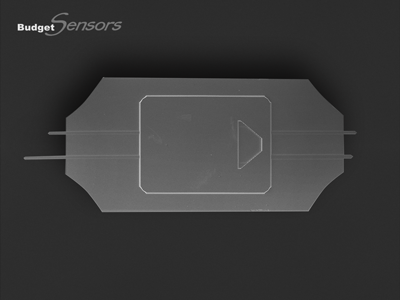

Versatile monolithic silicon AFM probe with 4 different tipless cantilevers on a single AFM holder chip for various applications: contact mode, force modulation mode, soft tapping mode and high frequency tapping/ non-contact mode. The short cantilever end is marked by a trapezoidal pattern visible with bare eyes.

The AFM holder chip fits most commercial AFM systems as it is industry standard size.

The main advantage of this product compared to regular, single-cantilever AFM probes is the freedom to choose in the very last moment the right cantilever for each application. You don't need to stock various AFM Probe types any more. Nevertheless, this product is not meant as a substitution to comparable single-cantilever AFM probes, because the geometry of each one of the All-In-One cantilevers differs from the geometry of comparable specialized single-cantilever AFM probes.

BudgetSensors offers consistent high quality at a lower price!
Application Modes:
AFM Probe Specifications:
AFM Tips:
shape tip height tip set back tip radius full cone angle half cone angle
Tipless (

AFM Cantilever(s):
cant. shape length width thickness force const. res. freq. probe base

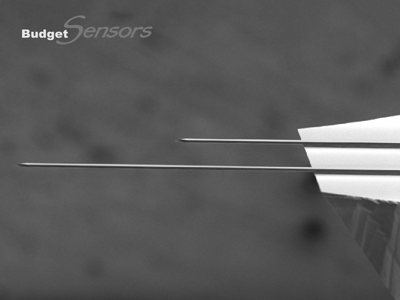

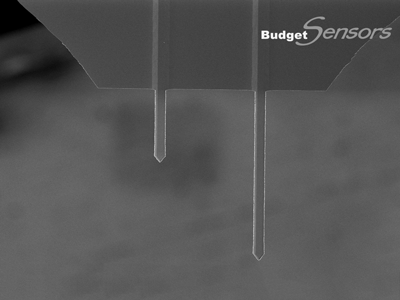

1Cantilever A - Contact Mode Beam 500 µm (490 - 510 µm)* 30 µm (35 - 45 µm)* 2.7 µm (1.7 - 3.7 µm)* 0.2 N/m (0.04 - 0.7 N/m)* 15 kHz (10 - 20 kHz)*
2Cantilever B - Force Modulation Beam 210 µm (200 - 220 µm)* 30 µm (25 - 35 µm)* 2.7 µm (1.7 - 3.7 µm)* 2.7 N/m (0.4 - 10 N/m)* 80 kHz (50 - 110 kHz)*

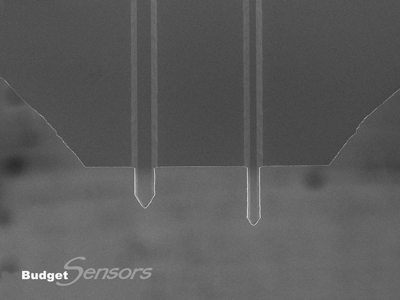

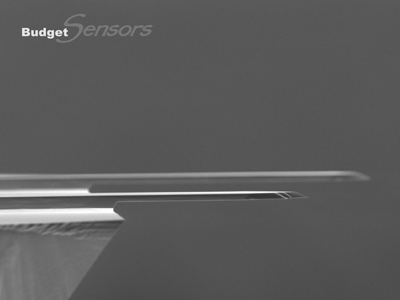

3Cantilever C - Soft Tapping Beam 150 µm (140 - 160 µm)* 30 µm (25 - 35 µm)* 2.7 µm (1.7 - 3.7 µm)* 7.4 N/m (1 - 29 N/m)* 150 kHz (70 - 230 kHz)*
4Cantilever D - Tapping Mode Beam 100 µm (90 - 110 µm)* 50 µm (45 - 55 µm)* 2.7 µm (1.7 - 3.7 µm)* 40 N/m (7 - 160 N/m)* 350 kHz (200 - 500 kHz)*

* typical range

**ScanAsyst® and Peak Force Tapping® are registered trademarks of Bruker Corporation.
*** Olympus® is a trademark of Olympus Corporation.
