CP-PNP-PS

Product Description:

This colloidal probe combines the well-known features of the proven Pyrex-Nitride probes series such as high application versatility and compatibility with most commercial SPMs with a reproducible sphere radius instead of a sharp tip.

Pyrex-Nitride probes are designed for various imaging applications in contact or dynamic mode.

The so called "Colloidal Probe Technique", where single colloids are attached with polymer glue to AFM cantilevers for force measurements, offers possibilities for a better understanding of fundamental interactions in a variety of fields. Examples are adhesion phenomena, particle-surface interactions, mechanical properties, suspensions, hydrodynamics and boundary slip - to name just some out of an increasing number of applications.

The Pyrex-Nitride probes have silicon nitride cantilevers with very low force constants.  The probe series features a support chip that is made of Pyrex. The cantilevers are stress compensated and have a 65 nm chromium / gold backside coating for high laser reflectivity.

The probe offers unique features:

• sphere material: polystyrene (PS)

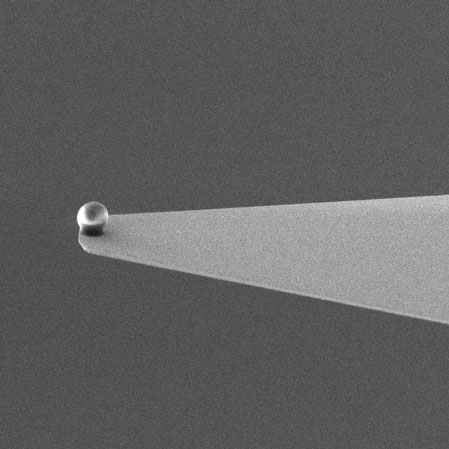

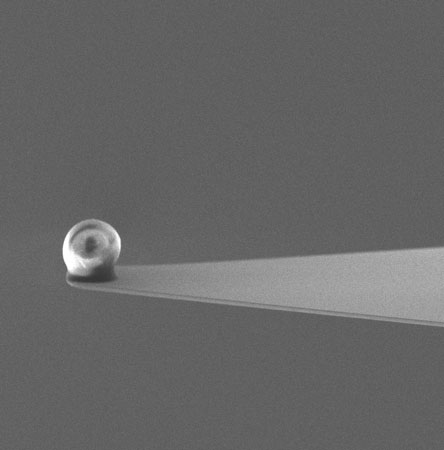

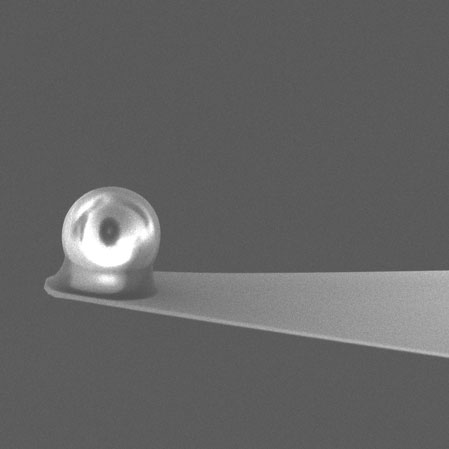

• excellent sphere diameter: A = 1.98 µm, B = 3.6 µm, C = 6.1 µm, D = 10.8 µm, or E = 14.45 µm (all +/- 5%)
  (Due to different masses the resonance frequency can differ.)
  Please choose A, B, C, D, or E  when ordering!

Only one cantilever with sphere, please choose long or short!

NB: Colloidal AFM probes based on PNP cantilevers have complex behavior that is strongly dependent on ambient temperature and humidity, often leading to cantilever bending and cantilever torsion. For this reason we strongly recommend using colloidal AFM probes based on qp-CONT or qp-SCONT cantilevers for all applications that require very soft cantilevers and/or operation in fluids. This product is manufactured to customer demand only. Therefore, we do not guarantee the integrity or functionality of PNP-based colloidal probes. Exchanges or returns are expressly excluded.
