Product Availability: 5 - 10 working days
[switch currency to EUR]
| Order | Request an official quote (RFQ) |
|---|
| Order Code, Price (EUR/GBP) | Probes per set |
|---|---|
| ContAl-G-10 | 10 pcs |
| € 205.00 £ 180.00 |
|
| ContAl-G-50 | 50 pcs |
| € 895.00 £ 788.00 |
|
| ContAl-G-380 | 380 pcs |
| € 4500.00 £ 3960.00 |
|
Product Availability: 5 - 10 working days
AFM Probe type:
ContAl-G
Manufacturer: BudgetSensors
(https://www.budgetsensors.com)
Product Description:
Monolithic silicon AFM probe for contact mode and lateral force mode operation.
The rotated tip allows for more symmetric representation of high sample features. The consistent tip radius ensures good resolution and reproducibility.
The AFM holder chip fits most commercial AFM systems as it is industry standard size.
For measurements in liquids please use the back side gold coated ContGD-G or the overall gold coated ContGB-G!
Consistent high quality at a lower price!
Application Modes:
AFM Probe Specifications:

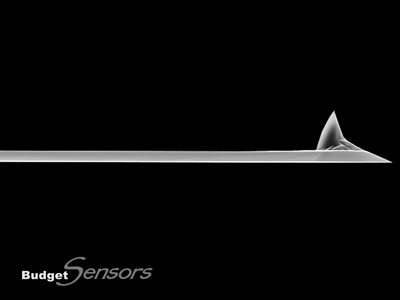

AFM Tips:
| shape | tip height | tip set back | tip radius | full cone angle | half cone angle | |
|---|---|---|---|---|---|---|
| Rotated | 17 µm (15 - 19 µm)* | 15 - 19 µm* | 15 µm ( 10 - 20 µm)* | < 10 nm |
20°-25° along cantilever axis 25°-30° from side 10° at the apex |
AFM Cantilever(s):
| cant. | shape | length | width | thickness | force const. | res. freq. | probe base |
|---|---|---|---|---|---|---|---|
| Beam | 450 µm (440 - 460 µm)* | 50 µm (45 - 55 µm)* | 2 µm (1 - 3 µm)* | 0.2 N/m (0.07 - 0.4 N/m)* | 13 kHz (9 - 17 kHz)* | ||
* typical range
Coating:
Aluminium reflex coating on detector side of the cantilever, 30 nm thick
