Product Availability: 5 - 10 working days
[switch currency to EUR]
| Order | Request an official quote (RFQ) |
|---|
| Order Code, Price (EUR/GBP) | Probes per set |
|---|---|
| SiNi-10 | 10 pcs |
| € 235.00 £ 207.00 |
|
| SiNi-30 | 30 pcs |
| € 650.00 £ 572.00 |
|
| SiNi-100 | 100 pcs |
| € 2050.00 £ 1804.00 |
|
| SiNi-300 | 300 pcs |
| € 4995.00 £ 4396.00 |
|
Product Availability: 5 - 10 working days
AFM Probe type:
SiNi
Manufacturer: BudgetSensors
(https://www.budgetsensors.com)
Product Description:
This competitively priced silicon nitride AFM probe features:

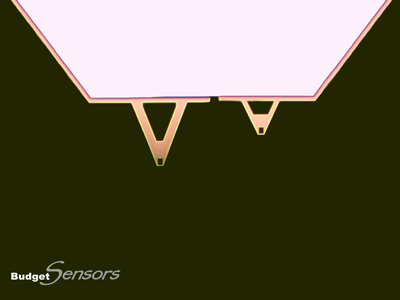

- 2 silicon nitride cantilevers for soft contact mode with two different lengths and force constants mounted on each side of a standard silicon support chip

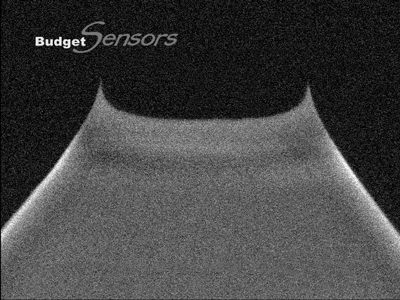

- silicon nitride wedge tip
- overall tip height of 12 μm (effective > 800 nm) with a double tip spacing of 4.5 μm
- macroscopic half cone angle of 35°
- 450 micron thick silicon holder chip
Consistent high quality at a lower price!
Application Modes:
AFM Probe Specifications:
AFM Tips:
| shape | tip height | tip set back | tip radius | full cone angle | half cone angle | |
|---|---|---|---|---|---|---|
| Pyramid | 12 µm (10 - 14 µm)* | 10 - 14 µm* | 0 µm ( 0 - 0 µm)* | < 15 nm | 35° (macroscopic) |
AFM Cantilever(s):
| cant. | shape | length | width | thickness | force const. | res. freq. | probe base |
|---|---|---|---|---|---|---|---|
| 1Short Cantilever | Triangle | 100 µm (90 - 110 µm)* | 16 µm (11 - 21 µm)* | 520 nm (470 - 570 nm)* | 0.27 N/m | 30 kHz | |
| 2Long Cantilever | Triangle | 200 µm (190 - 210 µm)* | 30 µm (25 - 35 µm)* | 520 nm (470 - 570 nm)* | 0.06 N/m | 10 kHz | |
* typical range
Coating:
Gold/Chromium on detector side of the cantilever, 70 nm thick
**ScanAsyst® and Peak Force Tapping® are registered trademarks of Bruker Corporation.
*** Olympus® is a trademark of Olympus Corporation.
