Product Availability: 5 - 10 working days
[switch currency to EUR]
| Order | Request an official quote (RFQ) |
|---|
| Order Code, Price (EUR/GBP) | Probes per set |
|---|---|
| qp-fast-10 | 10 pcs |
| € 356.00 £ 313.00 |
|
| qp-fast-20 | 20 pcs |
| € 629.00 £ 554.00 |
|
| qp-fast-50 | 50 pcs |
| € 1395.00 £ 1228.00 |
|
Product Availability: 5 - 10 working days
DANGER: One tiny amount of static electricity while you are handling these
probes will destroy the tip!
We highly recommend that you utilize an ESD
station and if you do not already have one, we have a mobile ESD station
for only £ ( EUR).
Considering the costs of these probes, this is a very wise investment.
AFM Probe type:
qp-fast
Manufacturer: NANOSENSORS
(https://www.nanosensors.com)
Product Description:

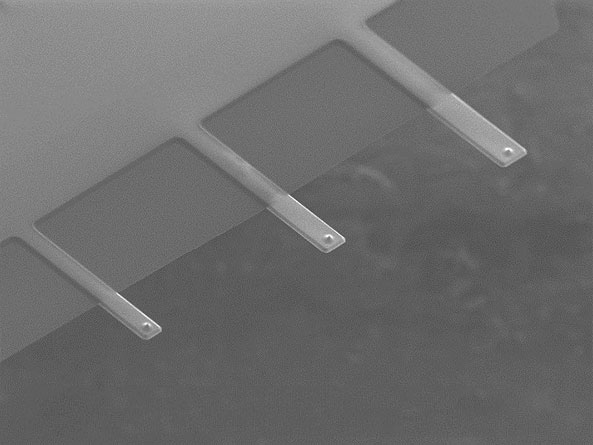

NANOSENSORS qp-fast AFM probes with its 3 cantilevers are designed for soft-, standard- and fast- Non-Contact or Tapping Mode AFM imaging (also known as attractive or dynamic mode). This AFM probe combines high operation stability with outstanding sensitivity and fast scanning ability in air and liquid environments.
A metallic layer (Au) is coated on the detector side of the cantilever. The cantilever bending is less than 2⁰.
The NANOSENSORS uniqprobe combines the well-known features of the other NANOSENSORS AFM probe series such as high application versatility and compatibility with most commercial SPMs with the additional advantage of a strongly reduced dispersion of force constant and resonance frequency.
The unsurpassed uniformity of the mechanical characteristics of the uniqprobe series is particularly important for applications, where a large number of probes with known and near identical force constants or resonance frequencies are needed.
The probe offers unique features:
- 3 cantilevers design for soft-, standard- and fast- Tapping/Dynamic Mode operation
- small dispersion of force constant and resonance frequency
- circular symmetric tip shape with a hyperbolic profile

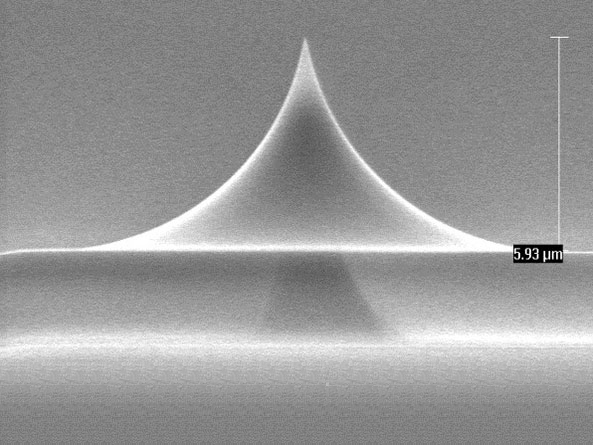

- typical tip height 6µm
- typical tip radius of curvature smaller than 10nm
- Au coating on detector side of cantilever
- tip and cantilevers are made of a quartz-like material
- alignment grooves on backside of silicon holder chip
- tip repositioning accuracy of better than ± 8µm (in combination with Alignment Chip)
- chemically inert
Application Modes:
AFM Probe Specifications:
AFM Tips:
| shape | tip height | tip set back | tip radius | full cone angle | half cone angle | |
|---|---|---|---|---|---|---|
| Circular symmetric | 7 µm (5.5 - 8.5 µm)* | 5.5 - 8.5 µm* | ( | < 10 nm (< 15 nm guaranteed) |
AFM Cantilever(s):
| cant. | shape | length | width | thickness | force const. | res. freq. | probe base |
|---|---|---|---|---|---|---|---|
| Beam | 40 µm (35 - 45 µm)* | 22 µm (20 - 24 µm)* | 2500 nm (2470 - 2530 nm)* | 80 N/m (50 - 140 N/m)* | 800 kHz (600 - 1000 kHz)* | ||
| Beam | 60 µm (55 - 65 µm)* | 27 µm (25 - 29 µm)* | 2500 nm (2470 - 2530 nm)* | 30 N/m (20 - 45 N/m)* | 420 kHz (340 - 500 kHz)* | ||
| Beam | 80 µm (75 - 85 µm)* | 32 µm (30 - 34 µm)* | 2500 nm (2470 - 2530 nm)* | 15 N/m (10 - 20 N/m)* | 250 kHz (200 - 300 kHz)* | ||
* guaranteed range
Coating:
A metallic layer (Au) is coated on the detector side of the cantilever which enhances the reflectivity of the laser beam. Furthermore it prevents light from interfering within the cantilever. The virtually stress-free coating is bending the cantilever less than 2 % of the cantilever length.Probes Datasheets:
Datasheet for all sensors with sets of 10 or 20 sensors.Datasheet for up to 32 sensors with full wafer.
**ScanAsyst® and Peak Force Tapping® are registered trademarks of Bruker Corporation.
*** Olympus® is a trademark of Olympus Corporation.
