Product Availability: 5 - 10 working days
[switch currency to EUR]
| Order | Request an official quote (RFQ) |
|---|
| Order Code, Price (EUR/GBP) | Probes per set |
|---|---|
| SelfAdjust-Air-10 | 10 pcs |
| € 260.00 £ 229.00 |
|
| SelfAdjust-Air-20 | 20 pcs |
| € 490.00 £ 431.00 |
|
| SelfAdjust-Air-50 | 50 pcs |
| € 1175.00 £ 1034.00 |
|
| SelfAdjust-Air-100 | 100 pcs |
| € 2250.00 £ 1980.00 |
|
| SelfAdjust-Air-200 | 200 pcs |
| € 4200.00 £ 3696.00 |
|
| SelfAdjust-Air-400 | 400 pcs |
| € 7500.00 £ 6600.00 |
|
Product Availability: 5 - 10 working days
AFM Probe type:
SelfAdjust-Air
Manufacturer: MikroMasch
(https://www.spmtips.com)

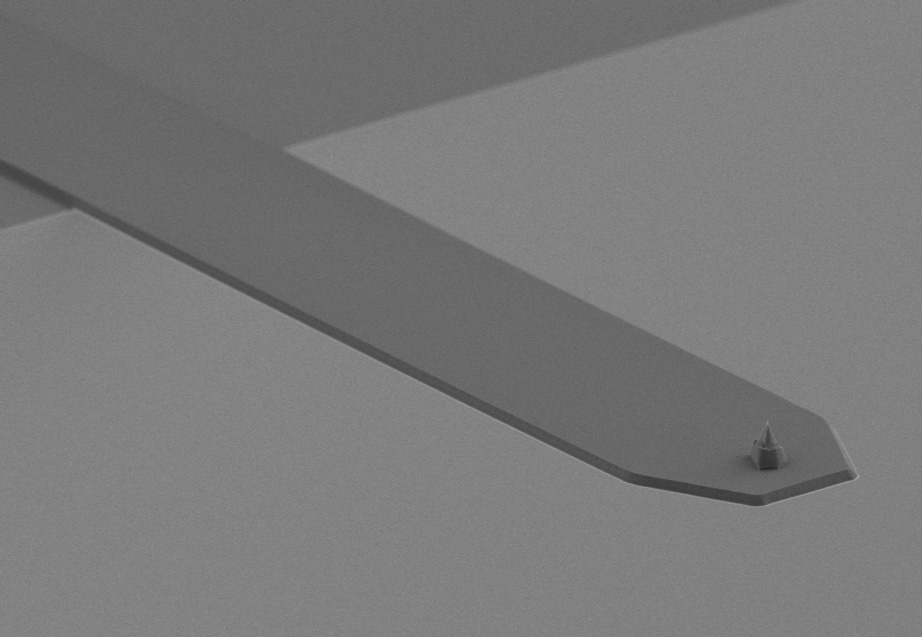

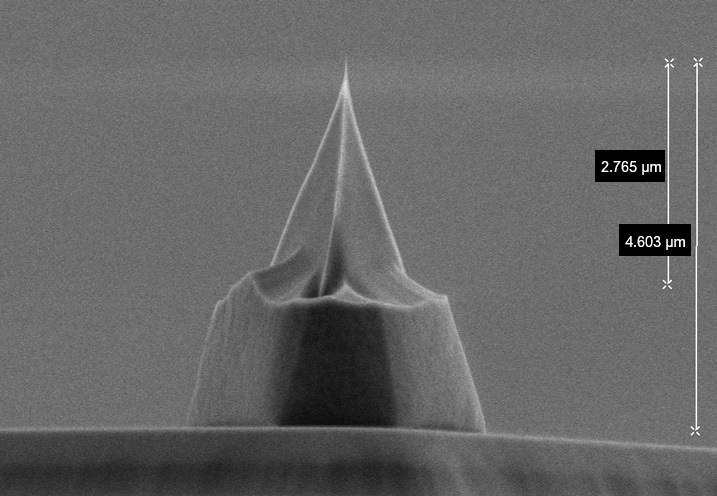

SEM image of MikroMasch® AFM Probe SelfAdjust-Air tip
Product Description:

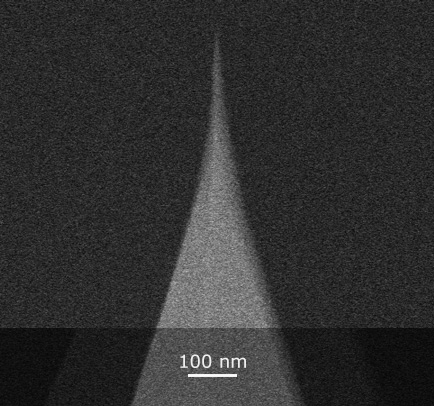

MikroMasch® SelfAdjust-Air AFM cantilevers are specifically designed for Bruker`s ScanAsyst®** mode. The AFM cantilevers properties such as force constant and Q-factor are finely tuned so that the ScanAsyst®** self-optimization algorithm is optimally supported. Bruker’s PeakForce Tapping™** mode controls and minimizes the interaction forces so precisely that the typical SelfAdjust-Air AFM tip radius of only 2 nm and maximum 8nm (one of the sharpest AFM tips in the MikroMasch silicon product range) is maintained over an extremely long period of time.
SelfAdjust-Air AFM cantilevers are suitable for high-resolution imaging on both hard solid surfaces and biological samples, as well as for general measurements for all users looking for an easy-to-use AFM cantilever with an outstanding lifetime.

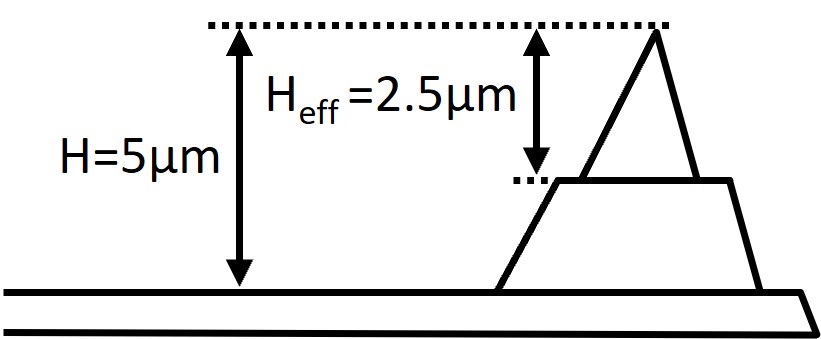

Effective tip height - 2.5 µm (2 - 3.5 µm)
Application Modes:
AFM Probe Specifications:
AFM Tips:
| shape | tip height | tip set back | tip radius | full cone angle | half cone angle | |
|---|---|---|---|---|---|---|
| Rotated | 5 µm (4 - 7 µm)* | 4 - 7 µm* | ( | < 2 nm | 40 ° |
AFM Cantilever(s):
| cant. | shape | length | width | thickness | force const. | res. freq. | probe base |
|---|---|---|---|---|---|---|---|
| Beam | 100 µm (90 - 110 µm)* | 25 µm (23 - 27 µm)* | 0.95 µm (0.9 - 1 µm)* | 0.4 N/m (0.25 - 0.75 N/m)* | 70 kHz (50 - 90 kHz)* | ||
* typical range
Coating:
Back side Al coated. Coating thickness - 100nm.
**ScanAsyst® and Peak Force Tapping® are registered trademarks of Bruker Corporation.
*** Olympus® is a trademark of Olympus Corporation.
