Product Availability: 5 - 10 working days
[switch currency to EUR]
| Order | Request an official quote (RFQ) |
|---|
| Order Code, Price (EUR/GBP) | Probes per set |
|---|---|
| 240AC-PP-10 | 10 pcs |
| € 390.00 £ 343.00 |
|
| 240AC-PP-24 | 24 pcs |
| € 790.00 £ 695.00 |
|
| 240AC-PP-50 | 50 pcs |
| € 1550.00 £ 1364.00 |
|
| 240AC-PP-100 | 100 pcs |
| € 2800.00 £ 2464.00 |
|
Product Availability: 5 - 10 working days
AFM Probe type:
240AC-PP
Manufacturer: OPUS by MikroMasch
(https://www.opustips.com)
Product Description:

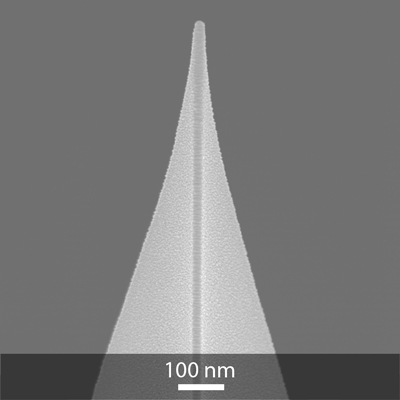

The 240AC-PP is designed for AC mode electrical characterization measurements such as Electrostatic Force Microscopy (EFM), Kelvin Probe Force Microscopy (KPFM), etc. The overall platinum coating ensures high electrical conductivity and significantly enhances the cantilever reflectivity. The tetrahedral tip is located precisely at the free end of the cantilever. This allows the tip to be positioned accurately over the area of interest on the sample surface.Application Modes:
AFM Probe Specifications:
AFM Tips:
| shape | tip height | tip set back | tip radius | full cone angle | half cone angle | |
|---|---|---|---|---|---|---|
| OPUS | 14 µm (12 - 16 µm)* | 12 - 16 µm* | µm ( µm)* | < 25 nm | 0° front, 35° back, <9° side |
AFM Cantilever(s):
| cant. | shape | length | width | thickness | force const. | res. freq. | probe base |
|---|---|---|---|---|---|---|---|
| Beam | 240 µm (230 - 250 µm)* | 40 µm (38 - 42 µm)* | 2.6 µm (2.1 - 3.1 µm)* | 2 N/m (0.6 - 3.9 N/m)* | 70 kHz (45 - 90 kHz)* | ||
* typical range
Coating:
25 nm Pt on both sides of the cantilever
