Product Availability: 5 - 10 working days
[switch currency to EUR]
| Order | Request an official quote (RFQ) |
|---|
| Order Code, Price (EUR/GBP) | Probes per set |
|---|---|
| SHR300-5 | 5 pcs |
| € 485.00 £ 427.00 |
|
Product Availability: 5 - 10 working days
AFM Probe type:
SHR300
Manufacturer: BudgetSensors
(https://www.budgetsensors.com)
Product Description:

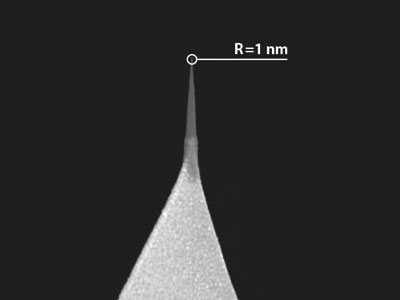

Single carbon spike on silicon apex!
The SHR300 is based on BudgetSensors' well established Tap300GB-G probe and it is suitable for high resolution, high frequency non-contact / tapping mode operation
This model features a single sharp hydrophobic diamond-like carbon extratip at the apex of gold coated silicon etched probe. There are no additional smaller extratips near the main one, just one well defined extratip.
The AFM holder chip fits most commercial AFM systems as it is industry standard size.
Consistent high quality at a lower price!
Application Modes:
AFM Probe Specifications:
AFM Tips:
| shape | tip height | tip set back | tip radius | full cone angle | half cone angle | |
|---|---|---|---|---|---|---|
| Supersharp | 17 µm (15 - 19 µm)* | 15 - 19 µm* | 15 µm ( 10 - 20 µm)* | < 1 nm |
AFM Cantilever(s):
| cant. | shape | length | width | thickness | force const. | res. freq. | probe base |
|---|---|---|---|---|---|---|---|
| Beam | 125 µm (115 - 135 µm)* | 30 µm (25 - 35 µm)* | 4 µm (3 - 5 µm)* | 40 N/m (20 - 75 N/m)* | 300 kHz (200 - 400 kHz)* | ||
* typical range
Coating:
70nm Gold on both sides of the cantilever. Carbon spike not coated!
**ScanAsyst® and Peak Force Tapping® are registered trademarks of Bruker Corporation.
*** Olympus® is a trademark of Olympus Corporation.
